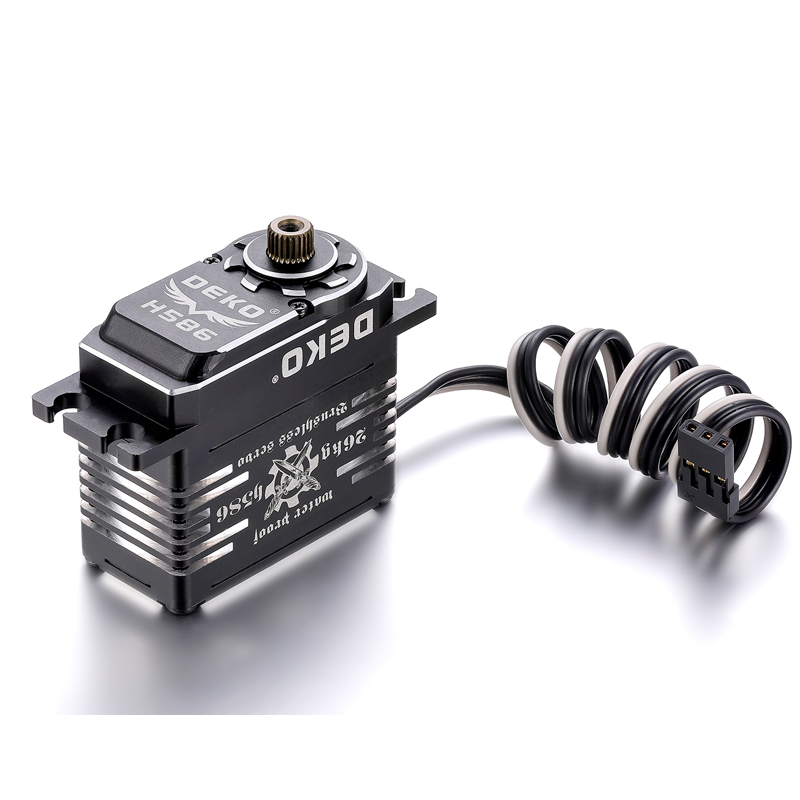

H586 Deko servo Standard Servo

Brushless Motor    Steel Gear    Digital Servo    25T

   For rc crawler, 1/8th buggy, airplane

Feature

High performance standard digital servo

High precision steel gears

High quality Brushless motor

Dual ball bearing

Full CNC Aluminium hulls and structure

Waterproof IP 67

Ideal for 1/10, 1/8  on road, off road, truck, plane, helicopter and engine

Specification

H586 (Standard Servo)

Operating Voltage: 6.0-8.4 V

Operating speed: 0.08sec/60°@6.0V

Operating speed: 0.07sec/60°@7.4V

Operating speed: 0.06sec/60°@8.4V

Stall Torque: 21kg.cm @6.0V

Stall Torque: 26kg.cm @7.4V

Stall Torque: 30kg.cm @8.4V

Gear: Steel ；Motor: BLS

Size: 39*20*41mm

Weight: 73g ；Spline: 25T
